Work Title
90°转轴轨迹曲线锯
-
Work Title（EN）

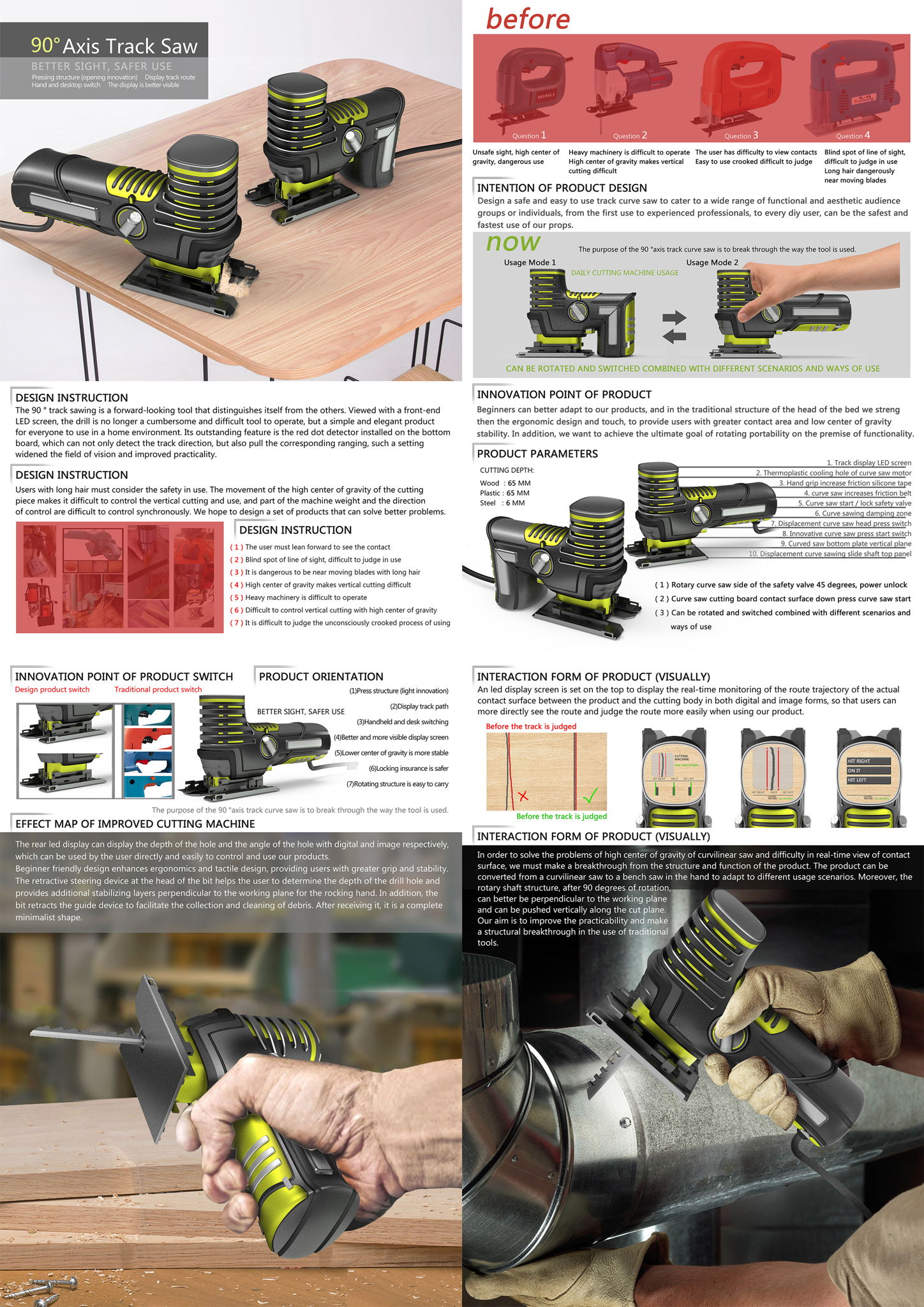

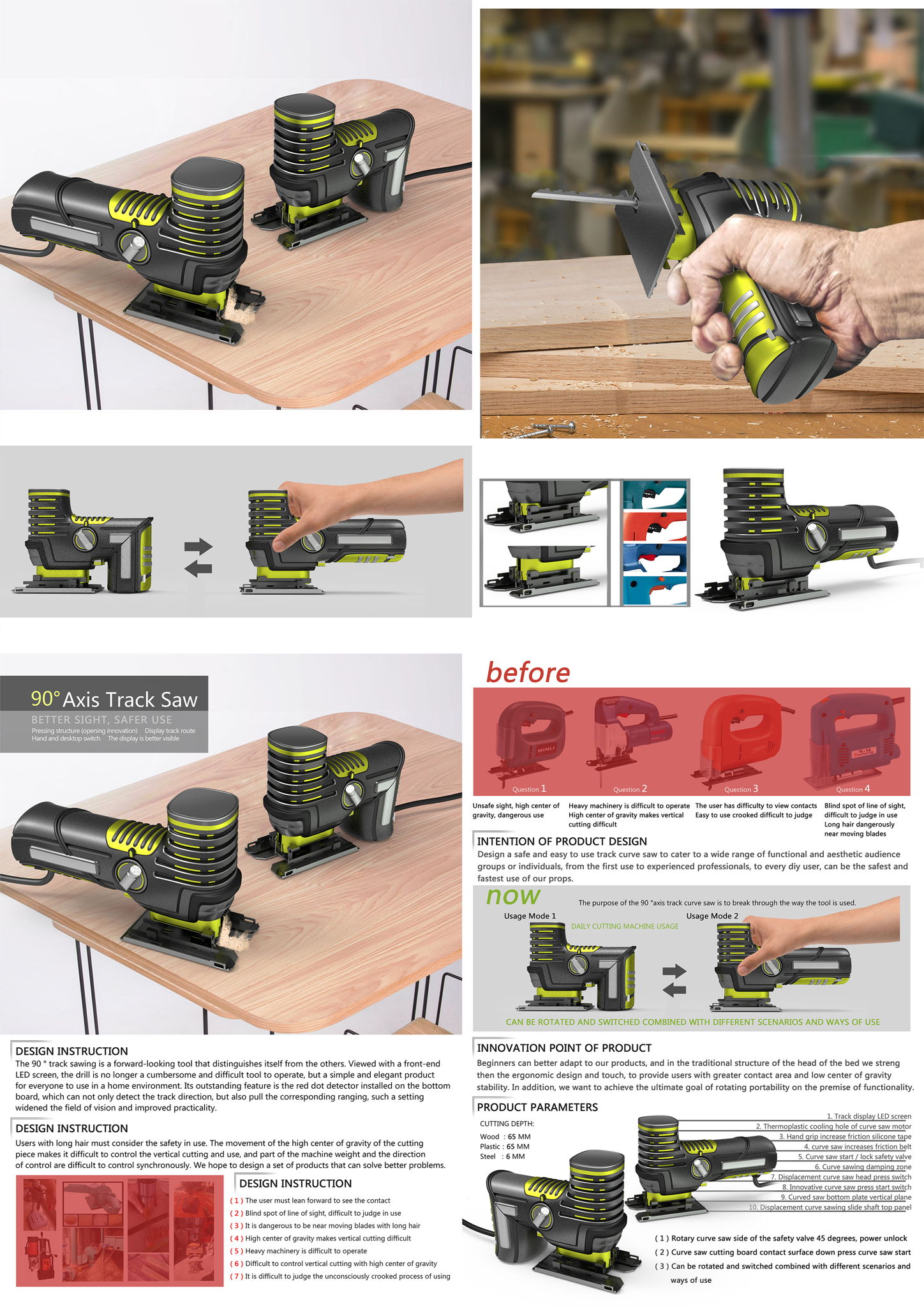

90 ° Axis Track Saw
-
Please describe the concept of your artwork in 2000 words.
为解决目前曲线锯重心高并且难以实时查看看接触面等问题，我们必须从产品的结构功能上去做突破，产品可以在手握曲线锯跟台式曲线锯转换使用，适应不同的使用场景，加上了转轴结构经过90度旋转能够更好的垂直于工作平面并且能够沿着被切割平面垂直推移，我们的目的是在于提升实用性的同时，在传统工具的使用方式上做结构上的突破。 初学者友好的设计增强了人体工程学设计和触感，为用户提供更大的抓地力和稳定性。产品使用流程初学者能够更好的适应我们的产品，并且在床头传统结构上我们加强了人体工程学设计以及触感，为用户提供更大的接触面积以及低重心稳定性，此外，我们希望在整个造型服从功能性的前提上，并且达到旋转便携的最终目的。
-
Please describe the concept of your artwork in 2000 words. （EN）
To provide users with greater contact area and low center of gravity stability. In addition, we want to achieve the ultimate goal of rotating portability on the premise of functionality.In order to solve the problems of high center of gravity of curvilinear saw and difficulty in real-time view of contact surface,The product can be converted from a curvilinear saw to a bench saw in the hand to adapt to different usage scenarios.
-
Work Specification
With the transformation of national economic development, users began to pay attention to the quality of products. Compared with foreign products, the Electric Drill in China has the following shortcomings: 1. The failure rate is relatively large and the reliability is low; 2. The oil leakage problem is more serious and widespread; 3. The processing quality of key parts needs to be improved; 4. Compared with foreign products, there is still a big gap in appearance. Solutions to these problems are as follows: 1. Using new structural methods to reduce the failure rate 2. Changing the liquid pressure by reforming the equipment structure, and then changing part of the position to hose connection, so as to reduce the problem of oil leakage; 3. Purchasing professional numerical control equipment; 4. Industrial design of products to make the appearance of the equipment more impact and industrial sense. By changing the base and the structure of the intermediate main cylinder, and using special simulation software to calculate, it shows that the scheme is feasible and solves the problem of high failure rate and oil leakage.
-
Work Specification（EN）
The era of user-centered and User-Participated innovative design has come. Starting from the needs of users, people-oriented, meeting the needs of users, and tapping the functions of products, old products are endowed with new functions, new uses and new shapes. Starting from the concept of cost design, new materials, new methods and new technologies are adopted to reduce product costs, improve product quality and enhance product competitiveness.Extensive use of stainless steel in both sheet metal and machining.
-
Media CoverageURL
http : //www.must.edu.mo/fa/ca
-
Video URL
-
Your OfficialURL (Website, Instagram, Facebook)
https://www.behance.net/cai849027924df64
-
Please describe how your work relates to the theme of the special prize.
To provide users with greater contact area and low center of gravity stability. In addition, we want to achieve the ultimate goal of rotating portability on the premise of functionality.In order to solve the problems of high center of gravity of curvilinear saw and difficulty in real-time view of contact surface,The product can be converted from a curvilinear saw to a bench saw in the hand to adapt to different usage scenarios.
- 94
90 ° Axis Track Saw
Others
To provide users with greater contact area and low center of gravity stability. In addition, we want to achieve the ultimate goal of rotating portability on the premise of functionality.In order to solve the problems of high center of gravity of curvilinear saw and difficulty in real-time view of contact surface,The product can be converted from a curvilinear saw to a bench saw in the hand to adapt to different usage scenarios.
